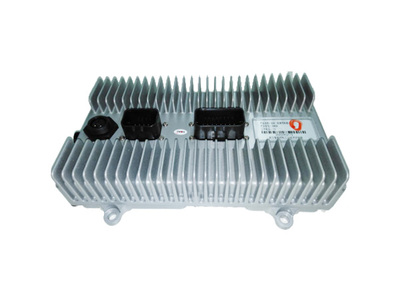

Product Appearance :

Dimensions：227mm×149mm×55mm

Working environment :

1. Working temperature：﹣40～85℃

2. Cooling：air cooling

3. Body protecting grade：IP67

Electrical charactor :

1. Rated input voltage：24V

2. With load output current：10A（single MAX）

3. Switch input inspecting：14 channels

4. Swtich output supply：16 channels

Function :

supply a standard platform for low voltage equipments on and off from vehicle.

Charactor :

1. the electric equipment connected to closest BCM, which simple the wiring a lots for whole vehicle.

2. output power supply with short-circuit protection and circuit-off diagnosis, it saves vehicle fuse wire

3. without regenerating status, energy consuming is less than 0.1uA

4. software setting is flexible, can set to hardware connecting accordingly.
